Land Rover Defender 9500lb Winch & Tubular Winch Bumper Kit - Britpart - DB1349

Land Rover Defender 9500lb Winch & Tubular Winch Bumper Kit - Britpart - DB1349

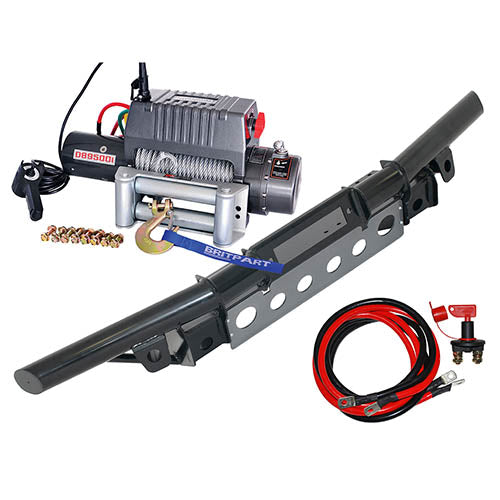

For Land Rover Defender - air-con up to 2016 DB9500i winch with steel cable Includes extended wiring kit and safety cut-off switch. Winch Specs 9,500lbs Steel cable 12 volt Powerful and reliable electric winches. If...
Vendor: BRITPART
SKU: DB1349
Availability: Usually Dispatched Within 24 Hours
£1,041.26
£1,041.26
Subtotal: £1,041.26

Worldwide Shipping Available

We are proud to offer worldwide shipping!

Secure Checkout

Feel confident when purchasing with our secure checkout.

Sold Individually

Please note all items are sold individually unless otherwise stated.

For Land Rover Defender - air-con up to 2016

DB9500i winch with steel cable

    Includes extended wiring kit and safety cut-off switch.

    Winch Specs

    9,500lbs

    Steel cable

    12 volt

    Powerful and reliable electric winches.

    If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.

    These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.

    Features
    > 3.6Kw (4.8Hp) heavy-duty series wound DC motor
    > Weather and dustproof contactor controls for longer life and improved amperage draw
    > Planetary gear system for fast line speed
    > Automatic load-holding brake
    > Free spooling
    > Power in and power out
    > Low electric current
    > Hardened drum
    > 24 month warranty

    Specification
    Rated line pull - single line - 9,500lbs  /  4,309kgs
    Gear reduction ratio - 212:1
    Motor (series wound) - 4.8Hp  /  3.6Kw
    Drum size (D x L) - 2.64 x 9"  /  67 x 228mm
    Cable supplied - 0.43" x 91.9'  /  9.53mm x 30.5m - Galvanised aircraft cable with break force 14,4000lbs
    Winch Motor - Rated at IP67 for waterproofness & dustproofness
    Winch Solenoid - Rated at IP54 for dustproofness
    Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77"  /  548 x 167 x 299mm
    Net weight - 94.8lbs  /  43.0kgs
    Mounting bolt pattern - 10 x 4.5"  /  254 x 114.3mm

    A full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.

    Together with the winches you’ll be able to ‘Get to where you want to go!’
